Product Overview

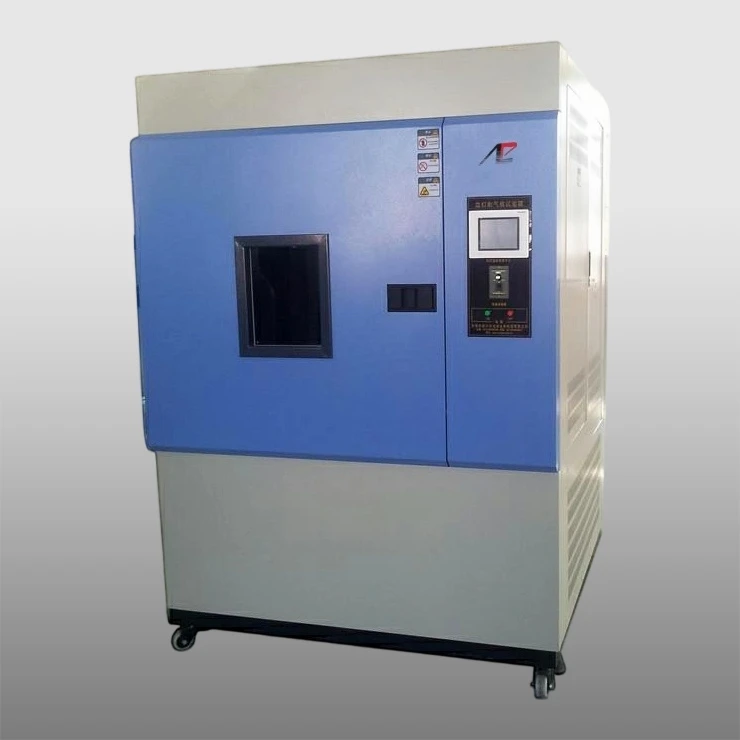

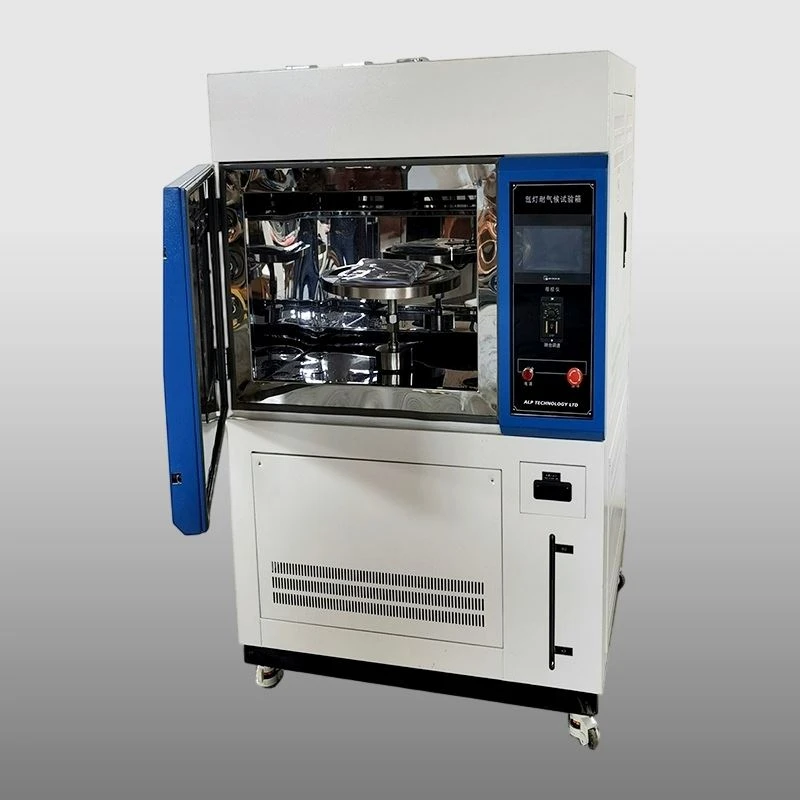

CovCua Txias Xenon Test Chambersyog cov txheej txheem kuaj ib puag ncig zoo tsim los simulate qhov kev puas tsuaj ntawm tag nrho - spectrum tshav ntuj, kub, thiab av noo ntawm cov khoom thiab cov khoom. Cov chav no tau siv dav hauv bioengineering, genetic engineering, ib puag ncig kev tshawb fawb, kev tshawb fawb kho mob, kev ua liaj ua teb, hav zoov, tsiaj txhu, cov koom haum kev kawm, thiab cov koom haum tshawb fawb. Lawv raug siv rau kev sim cog qoob loo thiab kev tshawb fawb txog kev laus hauv kev simulated climatic ib puag ncig, tso cai rau cov kws tshawb fawb los soj ntsuam kev ua haujlwm, zoo, thiab ua haujlwm ntev ntawm cov qauv hauv qab tiag - ntiaj teb hnub ci hluav taws xob. Tsis zoo li dej -txias lwm yam, lubCua Txias Xenon Test Chamberssiv lub tshuab cua- lub teeb txias txias, uas txo qis kev teeb tsa thiab kev saib xyuas tus nqi thaum muab kev ntseeg siab, ua haujlwm ntev -. Tus qauv XL-500 yog ib tus neeg sawv cev ntawm cov koob no, muab qhov sib npaug zoo ntawm kev ua haujlwm thiab kev lag luam.
Khoom nta
CovCua Txias Xenon Test Chamberstuaj nrog tus tswv tsev ntawm cov yam ntxwv siab heev uas ua kom raug, kev nyab xeeb, thiab yooj yim ntawm kev siv:
- Advanced system tsim- Cov qauv kev tshawb fawb, txheej txheem tsim khoom tsim, zoo li zoo, thiab kev saib xyuas yooj yim.
- High -cov khoom zoo- Cov khoom siv tseem ceeb yog kev tshaj lij thoob ntiaj teb, ua kom muaj kev ntseeg siab thiab ntev - lub sijhawm ruaj khov.
- Tag nrho -spectrum xenon teeb- Simulates ntuj tshav ntuj nrog rau UV, pom, thiab infrared teeb. Muaj ntau txoj kev pom kev xaiv muaj.
- Cua- lub teeb txias txias- Tshem tawm qhov xav tau ntawm cov kav dej sib txuas; txo cov nqi khiav lag luam thiab ua kom yooj yim rau kev teeb tsa.
- Precise irradiance tswj- Lub teeb sensor sojntsuam tsis tu ncua saib thiab kho cov qib irradiance rau kev sim rov ua dua.
- Kub & humidity tswj- Microcomputer integrated controller (tsim los ntawm Kaus Lim Qab Teb) nrog PID + SSR system. Qhov kub thiab txias RT +10℃txog 70 degree, av noo ntau 50-98% RH.
- Cov dej phwj feature- Simulates los nag thiab dej noo; Lub sij hawm nag los hloov tau los ntawm 0 txog 9999 feeb.
- Flexible qauv mounting- tsis xwm yeem zoo fixation muaj peev xwm; 50mm txoj kab uas hla qhov rau sab nraud kuaj fais fab lossis cov kab teeb liab.
- Tub yees system- Fab Kis tus thawj "Tecumseh" kaw compressor nrog cov lim drier imported, refrigerant flow windows, solenoid valve, thiab kua cia.
- Multi-tis muaj zog cua tshuab blower- Tshem tawm cov ces kaum tuag, ua kom muaj qhov sib txawv ntawm qhov kub thiab txias.
- Kev tiv thaiv kev nyab xeeb- Tshaj- tiv thaiv qhov kub thiab txias, theem poob / rov qab theem tiv thaiv, tiv thaiv overload, tiv thaiv lub tub yees overpressure, tiv thaiv dej, thiab tsis siv neeg kaw ntawm lub tswb txhaum.
Test Standards
CovCua Txias Xenon Test Chambersyog tsim los ua kom tau raws li ntau yam kev ntsuas huab cua thoob ntiaj teb thiab lub teb chaws, suav nrog:
GB9344-88- Kev sim txoj kev ntawm cov yas raug rau xenon teeb pom kev zoo.
GB/T12831-1991- Los ntawm txhais tes climatic aging test method ntawm vulcanized roj hmab (xenon teeb).
GB/T14522-93- Kev ntsuas kev ntsuas huab cua nrog xenon teeb rau cov yas, txheej, thiab cov khoom siv roj hmab siv hauv cov khoom lag luam.
GB/T2423.24-1995- Kev kuaj ib puag ncig rau cov khoom siv hluav taws xob thiab hluav taws xob - Test Sa: Simulated av hnub ci hluav taws xob.
ISO 9060: 2018 ntawv pov thawj- Hnub ci zog - Kev qhia tshwj xeeb thiab kev faib tawm ntawm cov cuab yeej rau ntsuas hemispherical hnub ci thiab ncaj qha hnub ci hluav taws xob.
MIL-STD-810F Txoj Kev 505.4- Hnub ci hluav taws xob (sunshine) kuaj rau cov khoom siv tub rog.
GJB 150.7A-2009- Laboratory ib puag ncig xeem txoj kev rau tub rog khoom.
Cov ntawv pov thawj no ua rauCua Txias Xenon Test Chambershaum rau kev lag luam xws li cov neeg siv khoom siv plastics thiab automotive coatings mus rau aerospace thiab tiv thaiv cov khoom.
Technical Parameters
Hauv qab no yog cov kev qhia tshwj xeeb tseem ceeb rau lubCua Txias Xenon Test Chambers( qauv ALP-XL-500 raws li siv):
|
Parameter |
Specification |
|
Qauv |
ALPXL-500 (Huab cua txias) |
|
Chav ua haujlwm qhov ntev (cm) |
500 × 76 0 × 500 (W × D × H) hli |
|
Sab nrauv qhov ntev (cm) |
1200 × 1150 × 1480mm |
|
Lub teeb kom muaj nuj nqis |
3 pcs ib |
|
Teeb txias hom |
Cua txias |
|
Qhov kub thiab txias |
RT +10℃~ 70 degree |
|
Humidity ntau |
50 ~ 98% R.H. |
|
Lub sij hawm los nag |
0 ~ 9999 min (kho tau) |
|
Spectrum wavelength |
290nm ~ 800nm (tag nrho spectrum) |
|
Tus tswj |
High -precision microcomputer integrated maub los (South Kauslim), PT100 sensor |
|
Cua txias compressor |
Fabkis Tecumseh kaw compressor |
|
Kev nyab xeeb nta |
Tshaj -kub, theem poob, overload, to, tub yees overpressure |
* Ceeb Toom: Qauv ALP-XL-900 yog muaj nrog dej txias rau chav ua haujlwm loj dua (950 × 950 × 850 mm) thiab muaj peev xwm ntau dua.*
FAQ
Q1: Kuv puas tuaj yeem ua ob qhov kev kuaj pom lub teeb thiab av noo ib txhij?
A: Yog. Lub chamber integrates kub, humidity, thiab irradiance tswj. Koj tuaj yeem npaj cov voj voog uas sib txuas hnub ci simulation nrog noo noo (los nag) thiab cua sov los tsim cov huab cua sab nraum zoov tiag tiag.
Q2: Lub teeb xenon ntev npaum li cas?
A: Lub teeb xenon tuaj yeem muab lub neej ua haujlwm tsim nyog thiab tuaj yeem hloov tau ntawm tus nqi pheej yig. ALP muab cov teeb hloov tiag tiag thiab cov txheej txheem hloov yooj yim.
Q4: Cov ntaub ntawv twg tuaj yeem kuaj tau?
A: Yas, txheej, roj hmab, textiles, automotive Cheebtsam, hluav taws xob enclosures, kws tshuaj, thiab cov ntaub ntawv siv - txhua yam khoom uas degrades nyob rau hauv tshav ntuj, tshav kub, thiab noo noo.
Vim li cas thiaj xaiv ALP?
ALP TECHNOLOGY (T&M) LTDyog kev sib koom ua ke -cov tuam txhab lag luam tshwj xeeb hauv kev ntsuas ib puag ncig. Qhia los ntawm "Technological Excellence Rooted hauv Kev Ncaj Ncees," ALP ua haujlwm rau kev lag luam roj teeb lithium, aerospace, tiv thaiv, lub zog, kev sib txuas lus, tsheb, thiab kev tshawb fawb. Nrog cov neeg siv khoom nyob hauv ntau dua 50 lub teb chaws thoob plaws tsib lub teb chaws - suav nrog tsoomfwv cov chaw sim, cov tuam txhab roj teeb lithium, thiab Fortune 500 tuam txhab - ALP muab ib qho - nres cov kev daws teeb meem los ntawm cov chav ntsuas kub thiab thermal shock testers rau ntsev tsuag, UV, xuab zeb / plua plav, nag kuaj chambers, thiab tawg - pov thawj taug kev{7.}} hauv chambers Peb lub zog loj tshaj plaws yog customization: peb tsim, tsim, nruab, thiab tswj raws li koj qhov kev xav tau tshwj xeeb.
